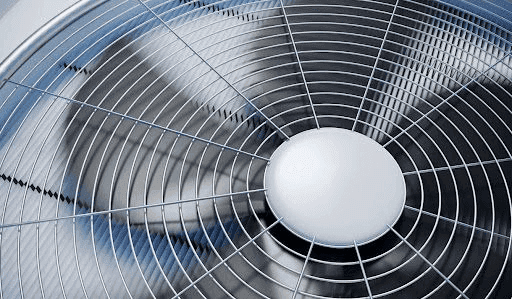

AC condenser unit

A split system central air conditioner has both indoor and outdoor units that house many components vital to the cooling process. Are you familiar with the outdoor unit and how it works to keep your home cool in the summer? HVAC.com discusses everything you need to know about AC condensers, including their purpose and how they work, to gain a better understanding of your cooling system.

What Is an AC Condenser?

The AC condenser, often referred to as the outdoor unit, is one of the key components of a split air conditioning system. This box-shaped piece of equipment is installed outside the home, usually on a concrete pad to the side or rear of your house. This outdoor condenser unit works in tandem with the indoor unit to remove heat from your home and transfer it outside, thereby cooling your home.

Key Components of an AC Condenser

The AC condenser unit houses several important parts, including:

  1. Compressor: The heart of the condenser, the compressor turns the refrigerant into a high-pressure, high-temperature gas, which then flows into the condenser coil
  2. Condenser Coil: This is a network of tubes filled with refrigerant. The coil facilitates the heat exchange process, allowing the refrigerant to release the absorbed heat to the outside air.
  3. Fan: The fan pulls air through the condenser coil, which helps in transferring the heat from the refrigerant to the outside air.
  4. Refrigerant Lines: The refrigerant lines are the conduits that carry the refrigerant between the indoor and outdoor units. The suction line carries low-pressure refrigerant gas back to the compressor, and the liquid line carries high-pressure liquid refrigerant to the expansion valve.
  5. Expansion Valve: This component regulates the flow of refrigerant into the evaporator. It reduces the pressure of the high-pressure liquid refrigerant, allowing it to expand and cool rapidly as it enters the evaporator coil.
  6. Pressure Switches: Pressure switches are safety devices that monitor the pressure levels of the refrigerant within the system. High- and low-pressure switches protect the system from operating under unsafe conditions, such as refrigerant overpressure or underpressure, which could damage the compressor or other components.
  7. Electrical Components: The contactor receives signals from the thermostat, providing power to the compressor and condenser fan to start the cooling cycle. Capacitors deliver the torque needed to start these components. The AC condenser also includes relays and a control board that manage the operation of components inside the unit.

How Does an AC Condenser Work?

Here’s a step-by-step breakdown of the cooling process and how the condenser unit works:

Step 1: Heat Absorption

As the cooled, low-pressure refrigerant enters the evaporator coil located within the indoor unit, it absorbs the heat from the air inside blowing over the coil. This process cools the air, which is then circulated back into the home.

Step 2: Compression of Refrigerant

The refrigerant, now warmed by the absorbed indoor heat, returns to the compressor, which compresses the refrigerant gas. As the refrigerant is compressed, its temperature and pressure increase significantly. This high-pressure, high-temperature gas then moves into the condenser coil.

Step 3: Heat Release

The hot refrigerant gas flows through the condenser coil’s tubes. The condenser fan blows air over these coils, which helps dissipate heat. As the air passes over the coils, it absorbs the heat from the refrigerant, causing it to cool down and condense into a high-pressure liquid.

Step 4: Refrigerant Expansion

The high-pressure liquid refrigerant then moves to the expansion valve, which controls its flow into the evaporator coil located in the indoor unit. The expansion valve reduces the pressure of the refrigerant, allowing it to expand and cool rapidly.

Why Your AC Condenser Plays a Vital Role in Keeping You Cool

Here are a few reasons why the condenser is so important to the efficiency and effectiveness of your air conditioning system

Heat Transfer Efficiency

The condenser’s main function is to transfer the heat absorbed from the indoor air to the outside environment. This heat transfer process is how an air conditioner is able to lower your home’s temperature.

System Performance

A well-maintained condenser ensures that the entire air conditioning system operates smoothly and efficiently. Any malfunction in the condenser can significantly impact the entire system’s performance, leading to inadequate cooling and increased energy usage.

Energy Efficiency

By effectively releasing heat, the condenser ensures that the other system components do not have to work harder than necessary, which conserves energy and lowers electricity costs.

System Longevity

Regular maintenance and proper functioning of the condenser can extend the lifespan of your air conditioning system. Neglecting the condenser can lead to frequent breakdowns and costly repairs, ultimately shortening the life of the entire system.
